06 Projects

Sample jobs: how each home gets sorted

Examples with sample data so you can see how we think an installation through: what each space needs, which system we choose and roughly what it costs.

Sample jobs · sample data

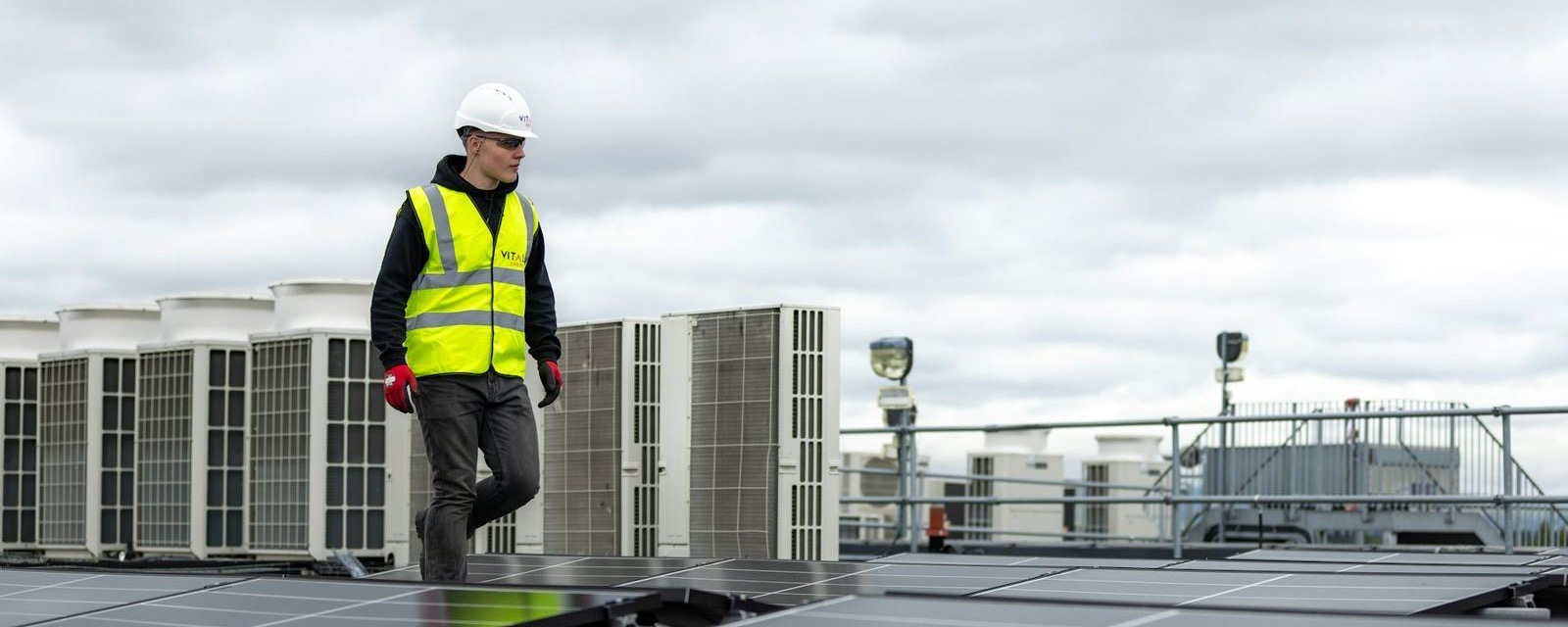

Technician in a hard hat and hi-vis vest walking across a roof past the outdoor units
Fig. C-01 · Outdoor units on the roof

C-01 · Shop

120 m² shop with a west-facing window

In the afternoon the sun pours straight through the glass. Two cassettes in the suspended ceiling, one per zone, and the outdoor units on the roof.

System
2 × 4-way cassette
Capacity
2 × 6,500 frig/⁠h (2 × 7.6 kW)
Work
2 days
Guide price
€4,500–5,900
See the full job
LOUNGE30 m² BED 114 m² BED 211 m² EXT.

C-02 · Home

90 m² flat with three rooms

Living room and two bedrooms with a single outdoor unit, on the balcony and in the shade.

System
3×1 multi-split
Capacity
3,000 + 1,500 + 1,500
Work
a day and a half
Guide price
€2,300–3,200

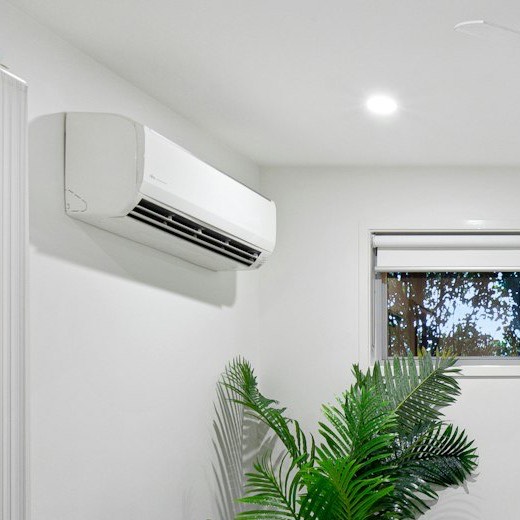

White split unit on the wall of a bright living room, by the ceiling
Fig. C-03 · Split a hand’s width below the ceiling

C-03 · Top floor

60 m² top-floor flat under the roof

The roof bakes all day and the windows are single-glazed: the living room needs a bigger unit than its size suggests.

System
Two 1×1 splits
Capacity
4,500 + 2,000 frig/⁠h (5.2 + 2.3 kW)
Work
1 day
Guide price
€1,850–2,400
FIRST FLOOR · 70 m² GROUND FLOOR · 70 m² EXT.

C-04 · Home

Two-storey house, 140 m²

Done during a refurb: one unit per floor in the hallway’s suspended ceiling and a grille in every room.

System
Ducted, one per floor
Capacity
2 × 6,500 frig/⁠h (2 × 7.6 kW)
Work
3 days
Guide price
€7,500–9,500
4.203.80 WINDOW · N 16 m² N

C-05 · Home

16 m² north-facing study

In summer it barely gets any sun, so the smallest catalogue unit does the job. In winter the same unit gives heat to spare.

System
1×1 heat pump split
Capacity
1,500 frig/⁠h (1.7 kW) · 1.9 kW of heat
Work
half a day
Guide price
€750–950

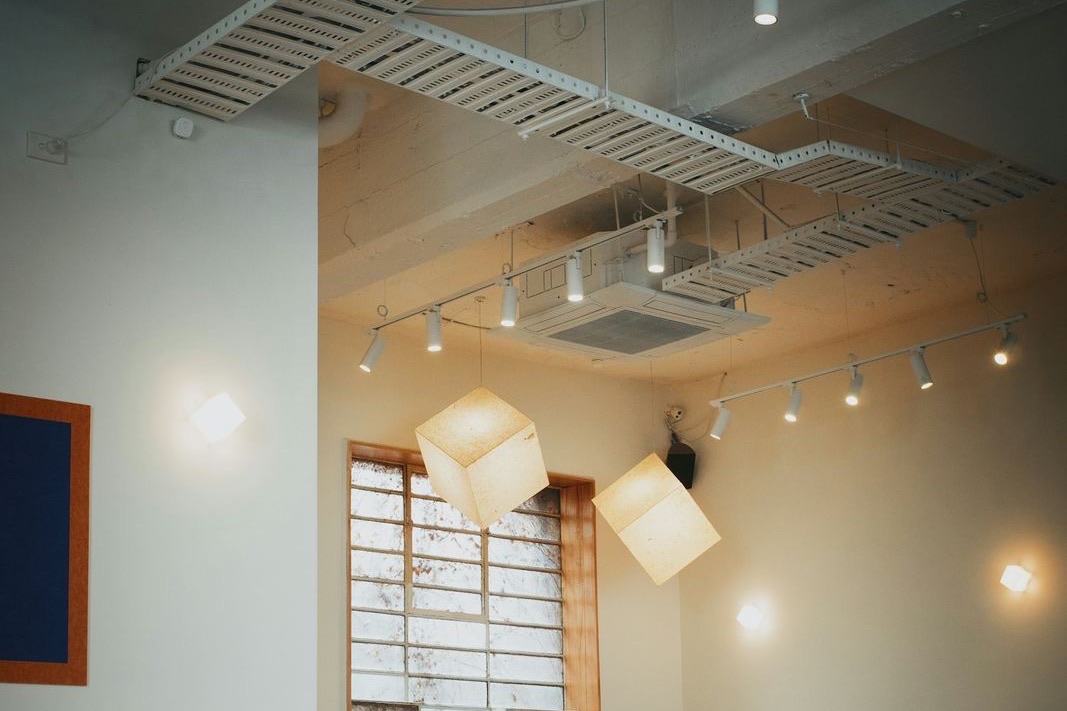

Café ceiling with a cassette unit between cable trays, spotlights and pendant lamps
Fig. C-06 · Cassette in a café ceiling

C-06 · Bar

70 m² bar with a kitchen

A cassette for the bar area, blowing out on all four sides, and a separate split for the kitchen: with the hobs going it needs more than its size suggests.

System
Cassette + 1×1 split
Capacity
8,000 + 2,500 frig/⁠h (9.3 + 2.9 kW)
Work
a day and a half
Guide price
€2,700–3,700

06.1 What you get

Four documents with every installation

So you know what was done, what it cost and what the warranty covers, without having to remember a thing.

  1. 01Survey sheetMeasurements, where each unit goes and where the pipe runs.
  2. 02Fixed quoteUnit, materials and labour in one figure.
  3. 03Commissioning sheetPressures, temperatures and refrigerant charge measured on the day of fitting.
  4. 04Written warrantyThree years on the unit, as the law requires, plus the installation warranty.

Does yours look like any of these?

Run the calculation for your rooms and we’ll tell you which of these is yours, or whether it’s something else.

Work out my home Compare systems
